Using Torus Graphs to Uncover Neural Patterns

One idea would be to use a mixture model, multiple models supporting each other, which could help them fit a bit better. This idea is fairly simple. Instead of taking the output of a single model, the final output is the average output across multiple models.

Let's jump over some theory. If this isn't what you are here for, jump to the section 3. You should be able to understand the method, results and discussion regardless.

2.1 Theory and some math

Torus Graphs

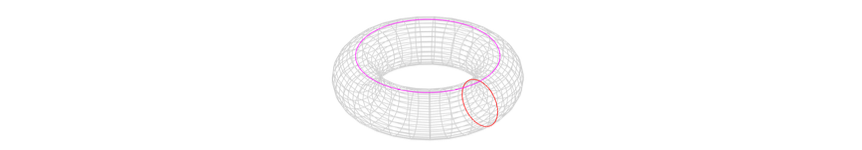

A torus graph (TG) is a method for analyzing circular data. Moreover, a torus graph is a graphical model that can be used for multivariate phase coupling analysis of oscillating signals, particularly in the context of neuroscience. A torus graph is a product of circles, which implies that a d-dimensional vector of circular measurements lies on a ddimensional torus. It could look like:

Initially, the torus graph was developed to identify coordination amongst signals from different brain areas, since it captures conditional associations. However, a single torus graph merely captures a frozen time shot of the signals. Hence expanding the torus graph to a mixture of torus graphs would theoretically simulate the conditional associations over time. The density for the torus graph can be mathematically modelled as seen below, and was developed in 2020 by Natalie Klein et al.

Where x represents a vector of phase angle values extracted from oscillatory signals for a single time point from each of the d signals.

This expression does not include a normalization constant as many other distributions do. This implies, amongst others, that the distribution will not integrate to 1. However, this is an applicable assumption since the model does not estimate an actual distribution, hence one cannot apply the same assumptions as one can with other distributions. Furthermore, the shape of the distribution has proven to be approximately accurate, which justifies the lack of a normalization constant.

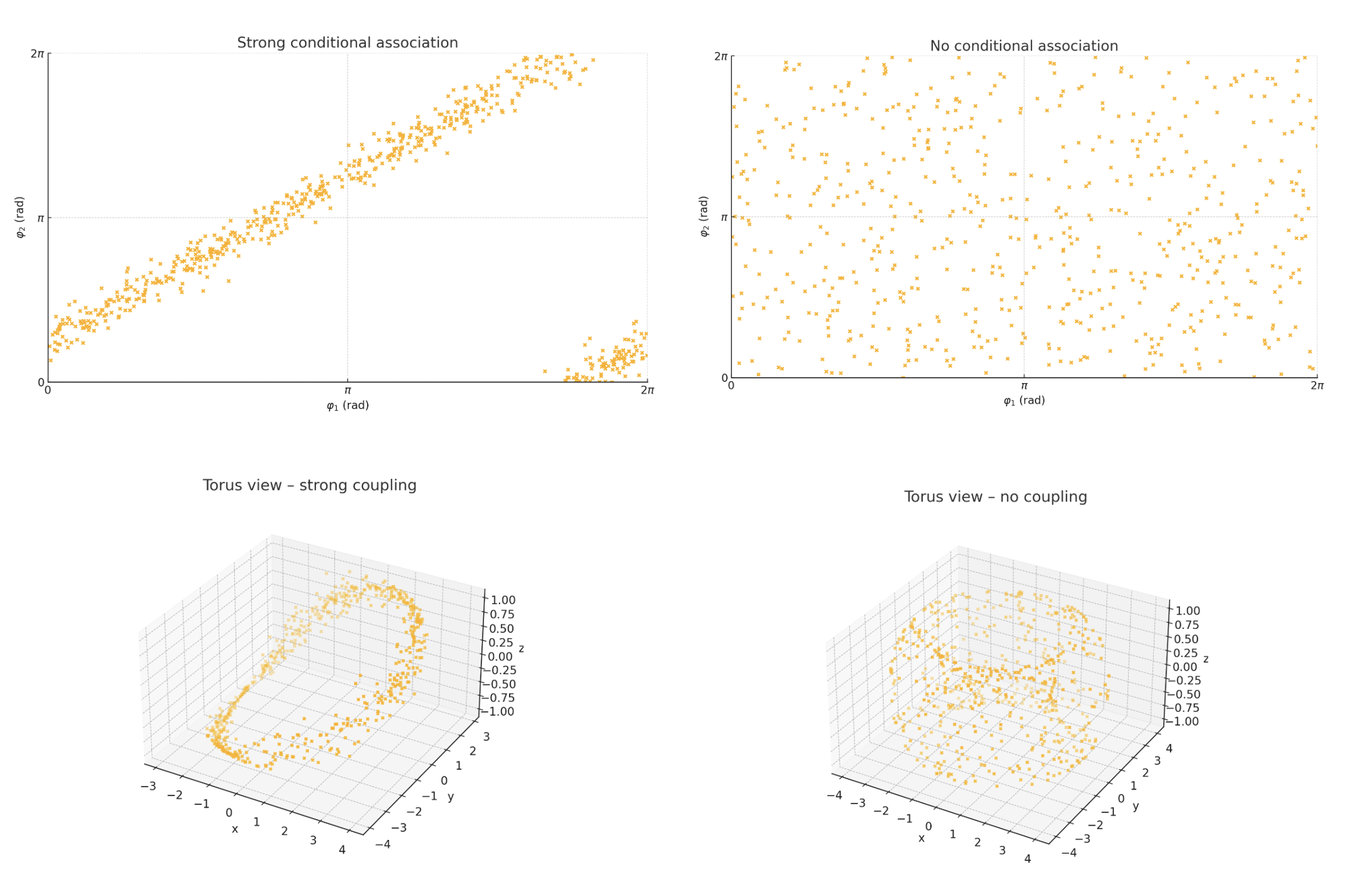

Generally, the model represents the product that lies on the torus graph. The density can, much like a multivariate normal distribution, be assumed to be part of the exponential family. The first sum represents the phases themselves as well as their coefficients, whereas the second sum represents the phase differences and phase reflections. However, assuming that the phases are uniformly distributed, one can also shy from the phase reflections.

The von Mises distribution is commonly used to model circular random variables, and this distribution is uni-modal and symmetric around its mean. This implies that as the parameter κ increases, the relative phase ϕ becomes increasingly concentrated around its mean. As κ goes towards 0, it reduces to a uniform distribution, thus representing the case where the phases of two signals are mutually independent. This results in the expression, made by Klein et al. 2020:

This expression then models the density of the torus graph for a single time point for each signal. However, there is one main issue at hand. Multiple time points are needed to capture the full conditions over time. Hence the expansion to mixture models.

Mixture Model

Suppose there are N samples 'x1, ..., xN' from a finite mixture distribution, namely the torus graph model. Then this can be modelled for K models as follows:

where

and

Here, the unknown parameters are 'ϕ = (ϕ1, ..., ϕK )' the model parameter for torus graphs and 'π = (π0, ..., πK )' which are the weights. This represents a combination of torus graphs, implying that multiple time points are included. This approximately models the circular data and their conditional associations over time.

Klein et al. 2020Furthermore, the normalization constant Z(ϕ_j) for each component p_j (x, ϕ) is intractable. But as mentioned earlier, this can be excluded mathematically since the shape of the distribution is not affected, though it will be included computationally. However, there is still a problem at hand, namely parameter estimation.

Matsuda 2019 first introduced parameter estimation of non-normalized models. A method for estimating both the parameters ϕ for the torus graphs and mixture model is needed. For the mixture model Noise Contrastive Estimation (NCE) will be used, whereas both NCE and Score Matching (SM) will be used for singular torus graphs.

Parameter Estimation

As mentioned the torus graph has a model parameter for the phase difference given by ϕ to compute the density. Usually a maximum likelihood approach would be applied to estimate the normalization constant. However this is not computationally feasible for dimensions higher than d > 2 as the probability density function relies on a multiplicative constant Z, which is intractable. Score matching offers a method independent of Z, whereas NCE sets up a binary classification problem, making the parameter estimation possible.

Score Matching

Established by Hyvärinen et al. 2005 , score matching (SM) uses the gradient of the log-density with respect to the data score vector to avoid the use of the normalization constant, Z. The general idea behind score matching is to estimate model parameters by minimizing the expected squared distance between the model and the data score function, using an estimate of the data score function.

Score functions are gradients of the log-density functions. Score matching requires density to be supported by Rd, which fortunately applies for circular densities as proved by Klein et al. 2020. It also requires for the domain to be differentiable, and as torus graphs are circular objects with log-densities comprised of cosine and sine functions, they are exactly infinitely differentiable within the bounds [-1, 1]. The score matching objective function is defined as such:

Here p(x) denotes the model score function and q(x, ϕ) denotes the data score function. The objective function is a measure of expected squared difference between the model and data score function. As shown by Klein 2020, the score matching objective function for torus graph models, under some mild regularity assumptions, can be expressed as:

This equation is derived by expanding equation 2.6 in the domain [0, 2π], and applying integration by parts solely to the term that uses both the model and data score function

You should now have a general understanding of Score Matching. To get a more in depth explanation, visit the Klein et al. Paper and the underlying reference to Score Matching.

Noise Contrastive Estimation

Noise contrastive estimation (NCE) is another method for parameter estimation, where NCE sets up a binary classification problem. It estimates non-normalized models by discriminating between observed data and artificially generated noise samples. The model is trained to discern between this, making the learning procedure more efficient. Suppose there are N samples 'x1, ..., xN' from a parametric distribution

Here ϕ is an unknown parameter and Z(ϕ) is the normalization constant, which is intractable. The function p(x|ϕ) is the non-normalized density, namely the torus graph, which contains the part that will be estimated. The non-normalized model in NCE is defined as:

Where c is an unknown parameter estimated from the data, and is defined as c =-logZ(ϕ).

To estimate the non-normalized mixture model, an extension is made of NCE. Equation 2.4 is reparametrized, where the parameter ck incorporates both the mixture weight πk and the normalization constant Z(ϕk):

Where c = (c1, ..., cK ) with 'c_k = log(π_k) - logZ(ϕk)' and each 'p_k(x|ϕ_k, c_k)' is defined as:

The reparametrization reduces to the first equation presented in this NCE part (the original NCE formula) when K = 1.

In addition to the observed data, there are generated some noise, n(y). The noise distribution should be chosen carefully, so that it is sufficiently close to the real data. The noise is difficult to discriminates from the data, but in the second presented formula the estimate of (θ, c) discriminate between them as accurately as possible, which maximizes the objective function:

Where both c and ϕ are free parameters. The objective function, JNCE is the log-likelihood of the logistic regression classifier, which can be optimized through an iterative loss approach in any gradient based package like Pytorch.

Evaluation: NMI

In order to evaluate how well NCE estimates the parameters for a torus graph, a method of clustering was introduced. The goal is that NCE should be able to cluster data points originating from different brain areas. By introducing a new variable z for '{1, ..., K}'' components, the mixture model can be reparameterized as seen in Matsuda et al. 2019 [8]:

Here the notations is identical to the previous, where the estimated parameters are still ϕ and c. p_k(x|ϕ_k) represents the density function for the torus graph component k as seen in the third equation presented in the NCE part. Moreover the above equation returns a probability of the data belonging to a specific component, thus enabling clustering.

Hereafter one can investigate how much mutual information there is between the estimated torus graphs and the actual data. For this, a simple normalized mutual information coefficient has been used, where the above equation is used as the input for our estimated values. The mutual information between two vectors, {x, y}, is calculated as:

And the normalized mutual information is:

Where p(x, y) represents the joint probability distribution and p(x), p(y) represents the marginal distributions.

3. But how to test if it actually works?

Testing these models is actually much harder than expected. We have two issues:

1. Real data is expensive and hard to get. Researchers and companies have some, but most is kept closed.
2. The best way to model the brain is the one we use to fit. We risk artifically creating data that fits far too well, as both the sampling and fitted model are the same.

When trying to create synthetic data, sampling from the model we use for fitting could be okay, if the noise we use is right. We have a few requirements for such a noise distribution:

1. We need a covariance measure in the distribution
2. It has to be tractable
3. It has to produce periodic signals

I could not seem to find any papers specifically working on such a distribution, and this seems like a rather large endeavour to try to come up with, so for now we will copy one of the approaches from Klein et al. Visit the Klein et al paper for a complete overview of how this is done or have a look in the code. We use a vonmises-distribution to randomize the drawings from a torus graph and use that as our synthetic data. This is not perfect, but should at least give us an indication of whether the code and model works as expected.

3.1 Real Data

Of course we need to test on some real data. As stated previously, it is limited what is open to the public here. 'Simultaneous EEG and fMRI signals during sleep from humans' available on OpenNeuro and described in this paper from 2023. The dataset consists of 20 minutes of awakening coverage and several 15-minute segments of sleep coverage with continuous scanning for each of the 33 individuals represented in this dataset. The data is of high dimensionality and to give our model a chance at some more simple data first, we use a brain atlas to group the signals into 7 larger group nodes each with 13728 observations.

4. Works, but room for improvement

Lets have a look at the results. All results should be fairly easy to reproduce by visiting the github repo. The results on the synthetic data are decent. Not so much on real data. For some unknown reason, the mixture model has a very hard time fitting.

The most probable issue is the estimation methods not performing well. This is indicated not only by the poor results on the real data, but heavily supported by the bad fit on synthetic data. As the research in the area is limited, I have not been able to find any papers describing other methods. For this reason, this endeavour ends here as we seem stuck with how to progress Torus Graph Mixture Models. We have not proven that this is the root cause, and there might be other, more significant causes that explain the poor performance.

4.1 Parameter Estimation Methods

We will first explore the performance of Score Matching (SM) vs Noise Contrative Estimation (NCE) on a single torus graph as explained in the theory section.

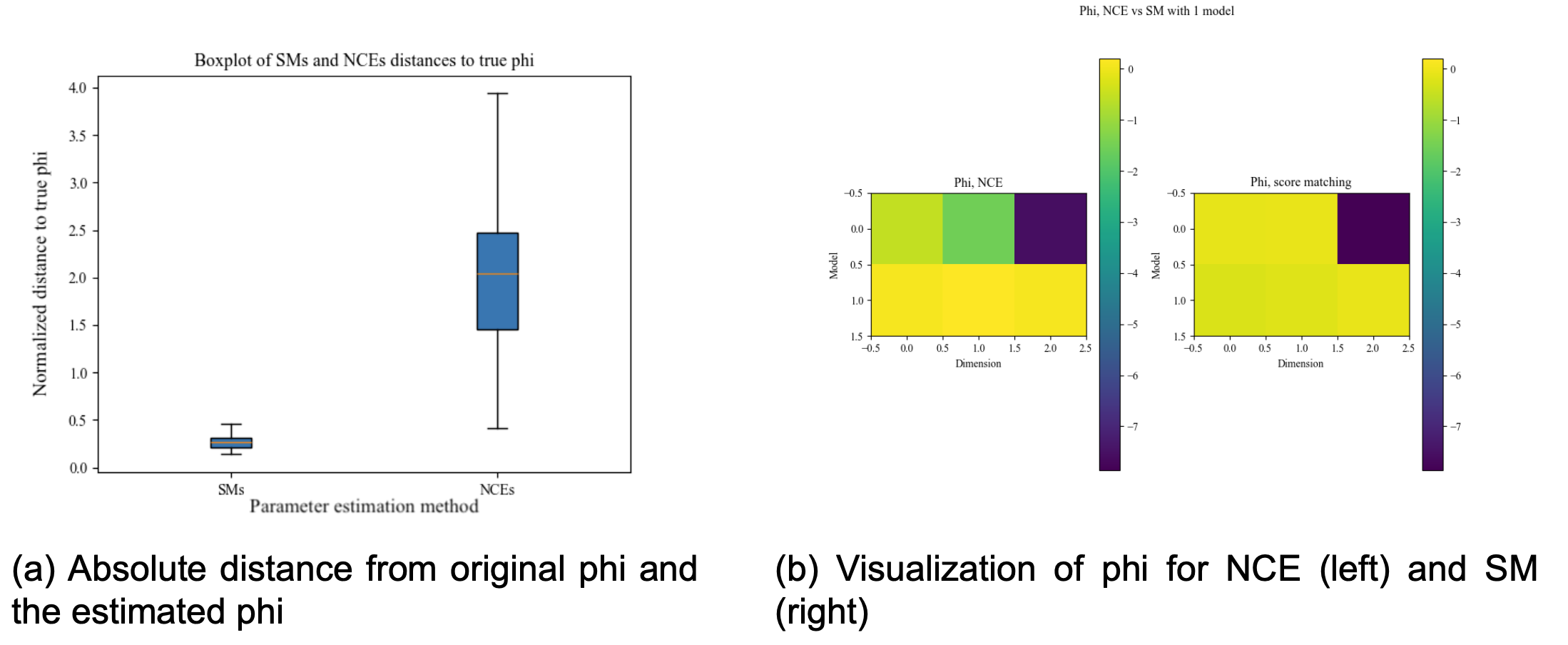

It is rather obvious that NCE performs not only more poorly, but is way more unstable when estimating the ϕ-matrix. This is supported by running a Wilcoxon signed-rank test (p-value: 0.00196). As NCE is our only option going forward with mixture models, we have to use the worse estimation method here. A future opportunity would be to use the idea of Score Matching to perform parameter estimation on mixture models.

4.2 NCE Parameter Tuning

NCE has several parameters available for tuning. Previous use of NCE suggests it is a fairly stable method, but let's make sure this too applies for our usecase.

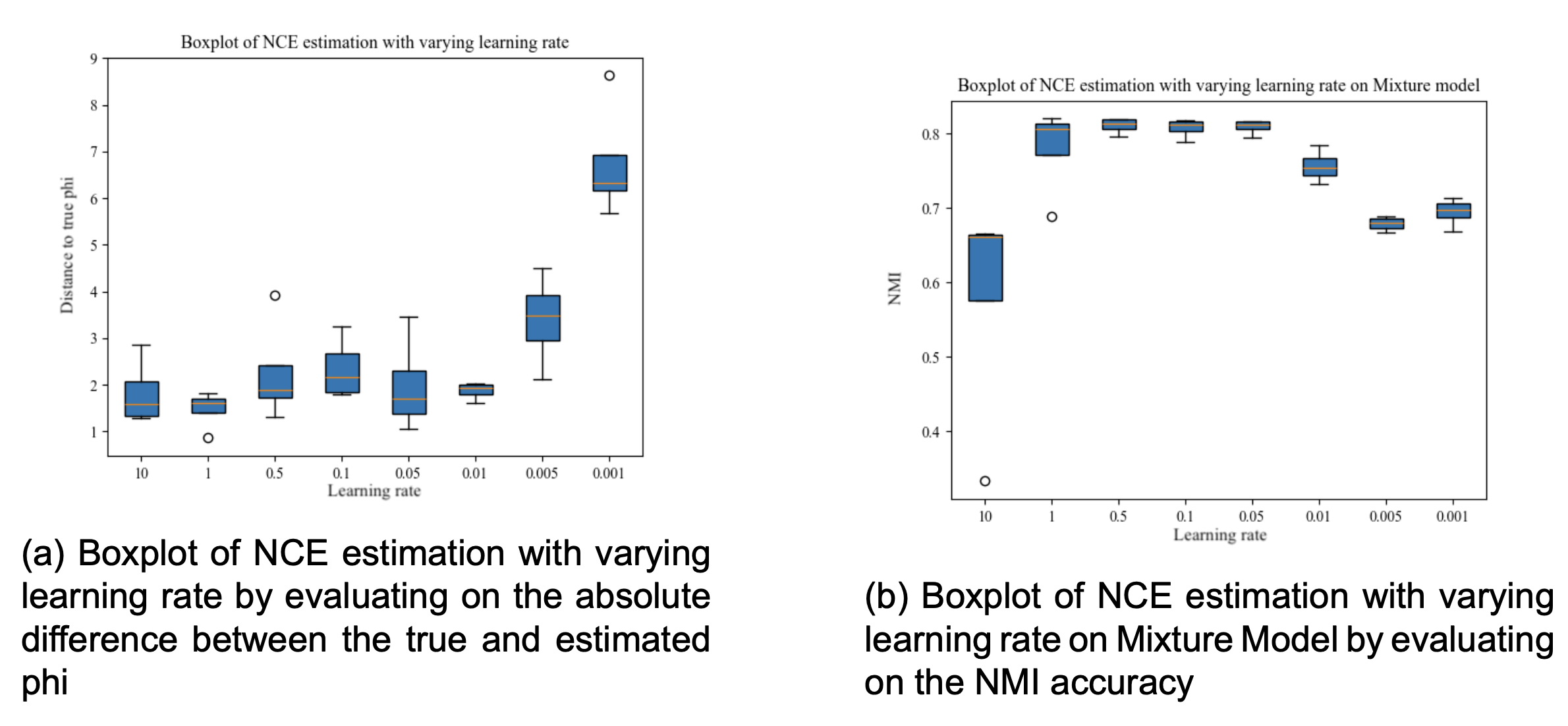

The lower the distance to true ϕ, the better. We too see that the method is fairly staple. Multiple learning rates perform equally well, with values more extreme than 0.001 starting to perform worse. When calculating the NMI scores for each option, 0.05 gets the lowest value, closely followed by 1, 0.5 and 0.1. Nevertheless, we use 0.05 going forward.

One of the other variables available for tuning is the number of steps in the iterative optimization process in NCE.

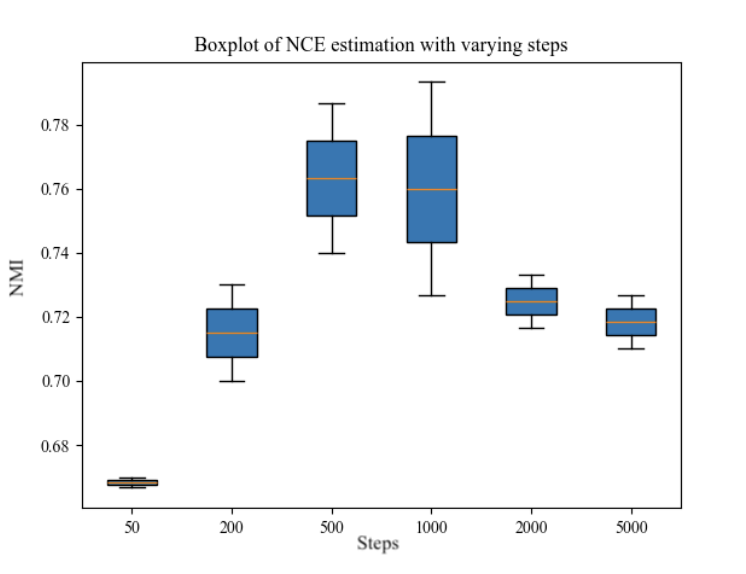

500 and 1000 steps is the best option with both less and more steps having a tendency to decrease the performance of the mixture model. The fact that more steps can decrease the performance is quite interesting, and I'm not really sure why this happens. Sure, the model can overfit, but the evaluation NMI metric is based on the overall fit of the model on the training data, so it's this behaviour is quite strange. This might be one of the reason why the overall performance is bad, and something that could too be investigated later.

4.3 Number of fitting components

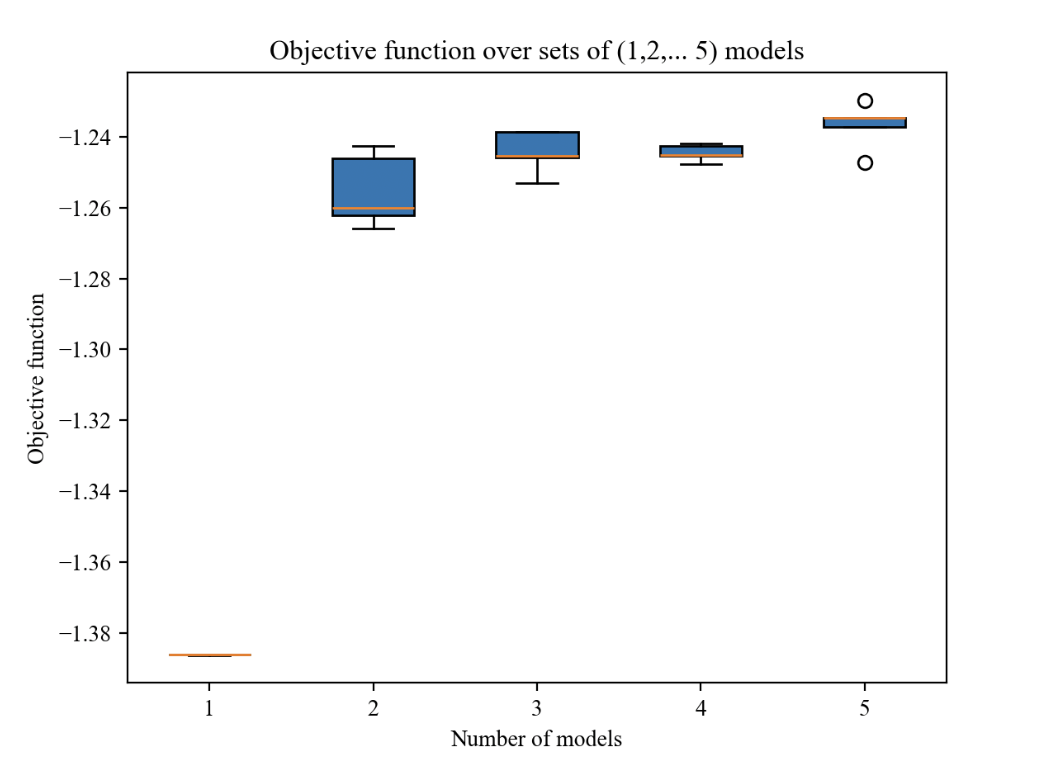

Next we will look at how the number of components (torus graphs / models) in a mixture model greatly affects the performance. When creating synthetic data the way we are doing, you need to choose how many models to draw from. In our case we choose 3, simply just to make it as easy as possible to analyze with not too much complexity. We then try to fit various mixture models with different number of components to that data:

In our case, more models does not reduce performance, but you get the best performance/speed when matching the natural distribution of the data you're to fit to. Duuuuuh, that might seem like an obvious and trivial conclusion, and partly it is. When fitting to data, where we don't know the components (i.e real data), one could simply try with a few different number of models, and then quickly get an idea of what the true number of components of the data is.

This conclusion is quite logical, and we would also expect the performance to be best at the exact point where the components and models of the mixture model align. This isn't currently the case, and this might be an incorrect hypothesis, or something else is wrong with the implementation or learning process, as we will look a bit into later.

The reason it is logical is this: Imagine you draw randomly from 3 different simple linear models. You could use a large model (nn) to brute-force the method, but in our case such models do not perform super well yet. So we could also try to make a mixture model of linear models that can fit to the data. Here it should be obvious that you should be able to get close to 100% with exactly 3 models as each of them can fit to each of the original linear models we sampled from. Less would probably make it really hard to fit, and more could maybe fit decently, but it would be harder, especially once you go up in dimensionality. So this is the logic behind the hypothesis, which we partly validated.

When fitting a mixture model of 3 components to synthetic data sampled from 3 models, we can compare the true ϕ-matrices of torus graphs we draw from to the ones we estimated in each of our components. The true component 1 and 3 look alike, but are different in that they have different signs. Ignored Indexing as it is irrelevant, the estimated ϕ values are decent (est. 2 -> true 1, est. 1 -> true 2 & est. 3 -> true 3). Again, we would expect this to be rather perfect, as this is a fairly simple task. This suggests that NCE might not be the best method to do the parameter estimation, or that we otherwise have to optimize it somehow. This is not something I will pursue here, but it should be remembered going forward.

Important note: Number of signal is not number of components. You can have more signals, but less underlying models representing the data.

4.4 Performance on real data

In our case, we use a brain atlas to convert the signals into 7 larger groups. We use a mixture model of 3 components to fit to the data. We are analyzing 3 different sleep cycles, and for this reason 3 is chosen. The main idea here is that there might potentially be other sub-stages that can be discovered by increasing the number of components, but this is not something we will directly pursue as the fit for 3 components is rather poor to begin with.

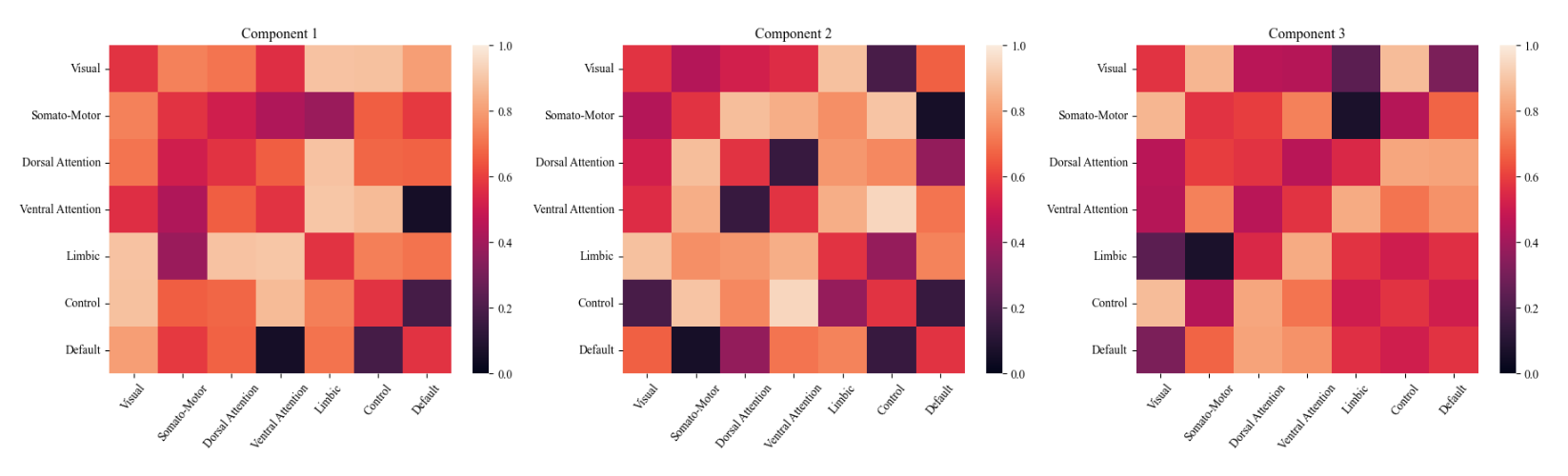

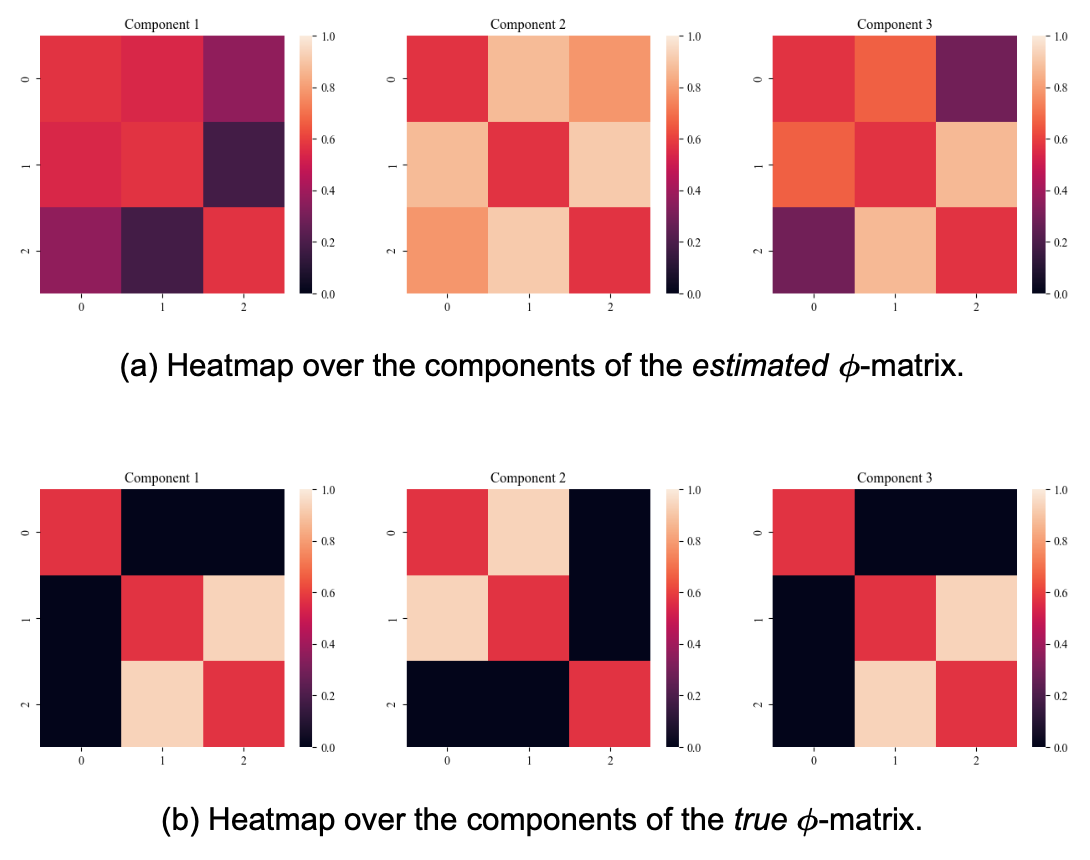

The output we are interested in are the ϕ-matrices. They give us the relationship between each brain group for each model. In a perfect world each model represents a sleep stage. On the positive the matrices are fairly different and have extreme values. This shows that some learning is done and that each model learns something different. On the negative side, the performance is poor. To illustrate this, we can simply plot the real sleep stage with the predicted one from the model:

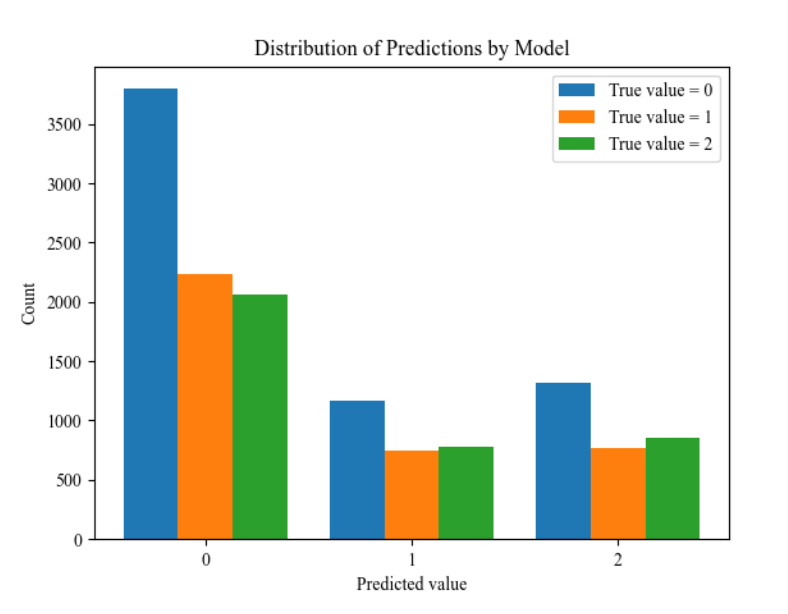

A majority vote classifier baseline model performs only slighty worse than our trained mixture model. Bad! The difference between the distributions for each result is only slighty different. The model has an extremely hard time fitting to the data. As discussed previously this could be due to the estimation method, NCE, not being good enough. To investigate a bit more, we can look at the loss curves for both the synthetic data and real data run.

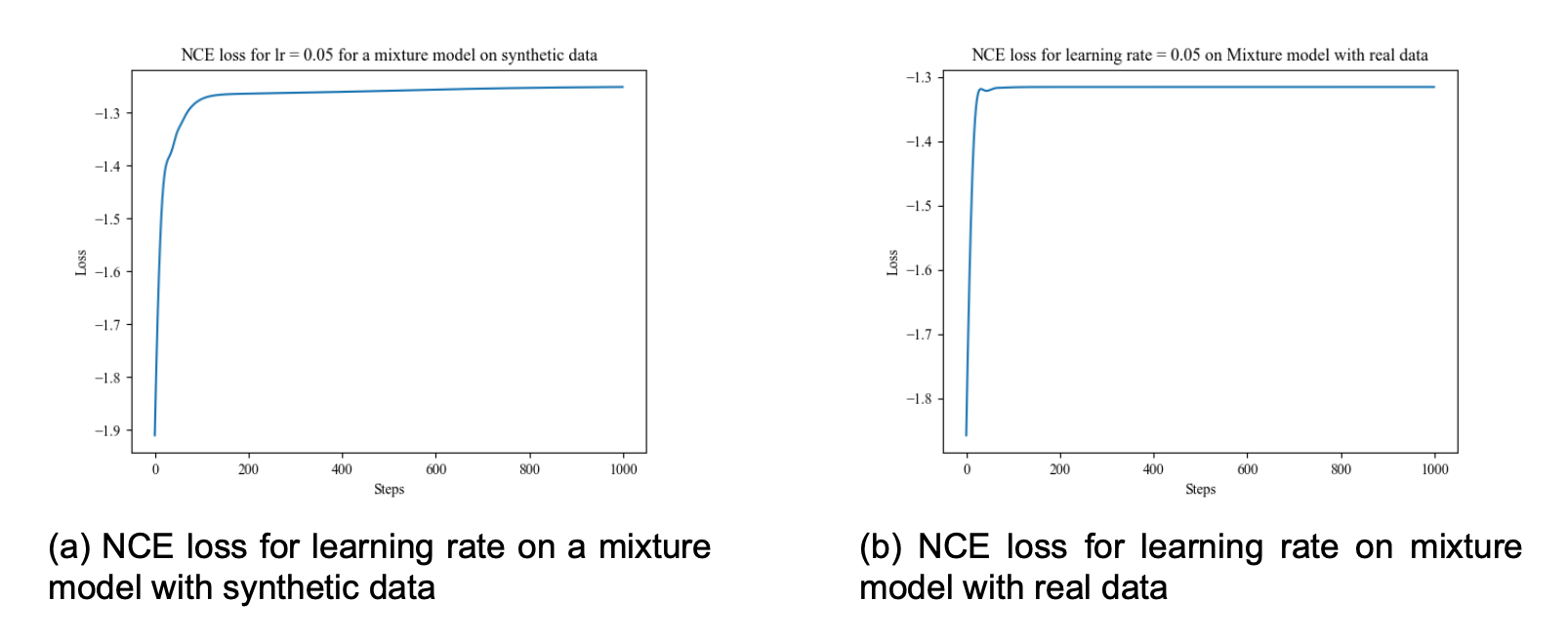

A few things to notice here. Acheving a minimum loss of ~1.26 is not great. For the synthetic data, we see continous improvement when running the estimation method, which is positive. For the real data, the model seems unable to fit at all. After 60 steps we achieve the minimum loss and cannot improve from there. Even with different learning rates, we don't get any improvement whatsoever.

5. Takeaways

Here is a quick wrap up of the main takeaways from this article:

1. Extending Torus Graphs to a Torus Graph Mixture Model should in theory help fit the model better to data and have the potential to uncover new sub-stages in various domains in neuroscience.
2. Our results show that the mixture model has extremely poor performance even on simple data. The model can fit to synthetic data, but here it also performs far worse than expected
3. The main issue is likely the estimation method. Score Matching performs way better for a single Torus Graph, but Noise Contrastive Estimation is the only way to currently estimate the parameters in a mixture model.
4. All our results can easily be reproduced by following the readme in our GitHub Repo

Acknowledgements

This project was made possible by the collaboration with the people seen in the GitHub Repo Contribution list. They deserve as much credit as me, but cannot be held accountable for any of the statements in this article.
